SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 14:33 - 04 Mar 2010    Post subject: Speaker + Amp Help Reply with quote

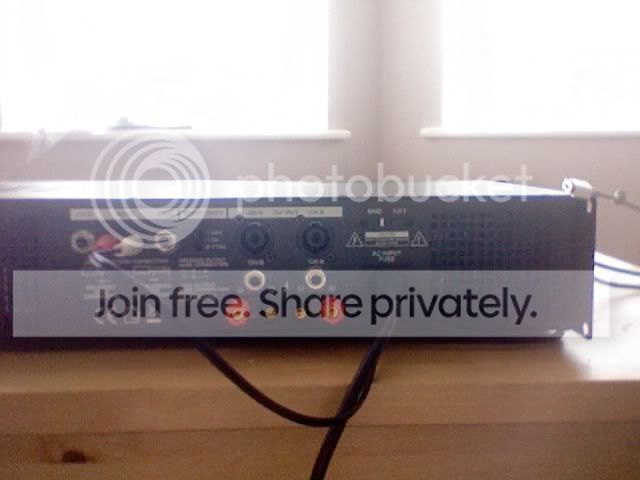

I need to connect this:

https://i17.photobucket.com/albums/b98/Iain007/Photo11-1.jpg

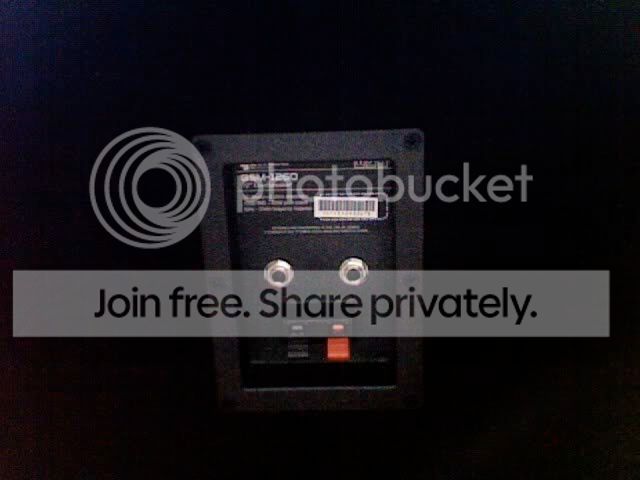

To two of these Speakers (one as left, one as right):

https://i17.photobucket.com/albums/b98/Iain007/Photo12.jpg

Complete noob when it comes to audio set-ups so I need to know what cables I will need and any other useful info.
 Back to top
View user's profile Send private message You must be logged in to rate posts

T1z3R
World Chat Champion



Joined: 23 Oct 2005
Karma :
PostPosted: 14:38 - 04 Mar 2010    Post subject: Reply with quote
id hazard a guess at speaker cable.
strip the ends bare and insert into the clamps on the back of the speakers and then tie round the posts on the amp and screw down the cap.
be sure to observe polarity is the same on both speakers.
____________________
duck my sick!
 Back to top
View user's profile Send private message You must be logged in to rate posts

SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 14:41 - 04 Mar 2010    Post subject: Reply with quote
That's what I originally thought but put myself off Laughing

Karma
 Back to top
View user's profile Send private message You must be logged in to rate posts

gray84
World Chat Champion



Joined: 18 Apr 2008
Karma :
PostPosted: 14:43 - 04 Mar 2010    Post subject: Reply with quote
yes as above
____________________
Road bike - 2002 YAMAHA R6(SOLD) 2008 YAMAHA R1(SOLD) 2007 APRILIA SXV 550(SOLD) 2007 SUZUKI GSXR 600
Dirt bike - 1989 HONDA CR80sw(SOLD) 1996 YAMAHA YZ125(SOLD) 2006 yamaha yz250(SOLD)
 Back to top
View user's profile Send private message Send e-mail You must be logged in to rate posts

Davo
Davo To The Rescue!



Joined: 05 Apr 2004
Karma :
PostPosted: 14:47 - 04 Mar 2010    Post subject: Reply with quote
gray84 wrote:
buy and amp wiring kit..

includes

-amp-power cable- from battery to amp with fuse inbetween
-amp-earth cable- connect to car body with nice clean connection
-amp-remote- thin wire connect to head unit so when head unit power up the amp comes alive
-amp-rca- sends sound from head unit to amp. run seperate from power cable (so there not next to each other

amp to sub-speaker cable you will have to find out about bridging the cables. so you take the red from either the left or right speaker on the amp and the same for the black.it works differant for differant subs ect

hope that kind of helps


Not very helpful if you don't want to installl it in a car though Smile

Basically as said you need to connect the phono's (red & white plugged lead) to your source device (CD Player etc..) then connect the speaker cables up (normally just come as a reel so just cut it to the required length). Job's done.
 Back to top
View user's profile Send private message Send e-mail Visit poster's website You must be logged in to rate posts

SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 14:50 - 04 Mar 2010    Post subject: Reply with quote
Could I not use the 6.3mm jacks instead?
 Back to top
View user's profile Send private message You must be logged in to rate posts
No More Names ...... This post is not being displayed because the poster has bad karma. Unhide this post / all posts.
No More Names ...... This post is not being displayed because the poster has bad karma. Unhide this post / all posts.

gray84
World Chat Champion



Joined: 18 Apr 2008
Karma :
PostPosted: 15:19 - 04 Mar 2010    Post subject: Reply with quote
Davo wrote:
gray84 wrote:
buy and amp wiring kit..

includes

-amp-power cable- from battery to amp with fuse inbetween
-amp-earth cable- connect to car body with nice clean connection
-amp-remote- thin wire connect to head unit so when head unit power up the amp comes alive
-amp-rca- sends sound from head unit to amp. run seperate from power cable (so there not next to each other

amp to sub-speaker cable you will have to find out about bridging the cables. so you take the red from either the left or right speaker on the amp and the same for the black.it works differant for differant subs ect

hope that kind of helps


Not very helpful if you don't want to installl it in a car though Smile

Basically as said you need to connect the phono's (red & white plugged lead) to your source device (CD Player etc..) then connect the speaker cables up (normally just come as a reel so just cut it to the required length). Job's done.


yeeehhhhh i got a bit mixed up lol
____________________
Road bike - 2002 YAMAHA R6(SOLD) 2008 YAMAHA R1(SOLD) 2007 APRILIA SXV 550(SOLD) 2007 SUZUKI GSXR 600
Dirt bike - 1989 HONDA CR80sw(SOLD) 1996 YAMAHA YZ125(SOLD) 2006 yamaha yz250(SOLD)
 Back to top
View user's profile Send private message Send e-mail You must be logged in to rate posts

map
Mr Calendar



Joined: 14 Jun 2004
Karma :
PostPosted: 15:32 - 04 Mar 2010    Post subject: Reply with quote
Davo wrote:
... then connect the speaker cables up (normally just come as a reel so just cut it to the required length). Job's done.

On the 2 core speaker cables one core will have either printing or a moulded rib. Use this to identify the red and block wires (i.e. printed/rib wire to red in amp and speaker(s) other one into black).

Iain 007 wrote:
Could I not use the 6.3mm jacks instead?

I maybe wrong but I've always thought plugin speaker connectors were 4mm banana plug ones Confused


There's a lot of tosh spoken about speaker cables and the quality. Basically always a good idea to get the best you can afford. These tend to be the thicker ones. Downside of that is these are not as easy to hide and bend around corners if required. That said I've known people run speakers on bell wire and mains cable. Really depends on (a) your amp (b) your speakers and (c) how rich your are.

This has been a useful reminder for a to do job. Before we decorated I think my cables were old QED 79 strand. Not got around to reinstalling. Maybe I'll sort it out as a job for Easter.
____________________
...and the whirlwind is in the thorn trees, it's hard for thee to kick against the pricks...
Gibbs, what did Duckie look like when he was younger? Very Happy
 Back to top
View user's profile Send private message Send e-mail Visit poster's website You must be logged in to rate posts

SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 17:40 - 04 Mar 2010    Post subject: Reply with quote
Got it sorted now, the silver ones above the +ve -ve ones are 6.3mm audio jacks. The one on the left is input, the one on the right is for 'piggybacking' another speaker (on the speaker, on the amp it's just L/R).

I connected a 6.3mm monitor headphone cable to the amp for now jobs done. Just need to buy some decent cables tomorrow.

Thanks for the quick help Karma
 Back to top
View user's profile Send private message You must be logged in to rate posts
No More Names ...... This post is not being displayed because it has a low rating (Abusive). Unhide this post / all posts.

SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 20:57 - 04 Mar 2010    Post subject: Reply with quote
Renaissance wrote:
Thicko ! Rolling Eyes Arrow

Rate away m fer !

https://i37.photobucket.com/albums/e53/covdude/plan-shape-matching-board-lrg.jpg

..............................................................................................


Why post you stupid prick, I ask one genuine question and you post something stupid so I rate appropriately.

Looking at your karma I'm guessing you get some sort of pleasure out of a reaction.

Just fuck off and stay out of my threads unless you are going to post something productive.
 Back to top
View user's profile Send private message You must be logged in to rate posts
No More Names ...... This post is not being displayed because the poster has bad karma. Unhide this post / all posts.

neil.
World Chat Champion



Joined: 24 Feb 2008
Karma :
PostPosted: 12:52 - 05 Mar 2010    Post subject: Reply with quote
As well as jacks and binding posts you also appear to have speakON connectors, which are the bee's knees. Fully insulated on the outside and no risk of momentarily shorting the amp when plugging stuff in, and they also twist and lock so you can't pull them out by accident. Your amp won't sound better or worse but the connector is far superior to a jack or bare cables.

https://www.neutrik.com/uk/en/audio/203_324141/speakON_Lockable_Loudspeaker_Connector_group.aspx

Normal 13A mains cable (using 2 of the 3 conductors) works great for speakers too. I wire up all the recording studios here that still use passive speakers with it and it's great. I also tin the ends which means you get a nice tight fitting and no stray strands. It's a complete waste of money being sucked into the audiophile world with fancy cables.

So yeah it doesn't matter what you use really. Cheapest, easiest option is mains cable with bare ends into the binding posts on amp and speakers. Best 'practice' would be using speakONs on the amp and jacks on the speakers if you know there's a chance of stuff being pulled/stressed in that area.

Also, banana plugs are absolutely evil, freshly squeezed from the bum of Satan himself. You don't see them that often on modern gear, but they used to be everywhere.
____________________
CBT February 2008 | A2 June 2008 | Yamaha YBR125 (written off) | Honda CBF125 (current)
 Back to top
View user's profile Send private message Visit poster's website You must be logged in to rate posts

DEN MONKEY
World Chat Champion



Joined: 17 May 2005
Karma :
PostPosted: 08:51 - 09 Mar 2010    Post subject: Reply with quote
Here it don't get easier than this

https://www.hi-fi-cables.com/images/cables/bi-wire-speaker-diagram1.gif

with the exception on your speakers you have the square connectors. Just push down on the tab at the bottom (spring loaded) and slide the cable in the now open hole , then release.
____________________
meh
 Back to top
View user's profile Send private message Send e-mail You must be logged in to rate posts

SpicyBlimp
World Chat Champion



Joined: 15 Oct 2007
Karma :
PostPosted: 20:24 - 09 Mar 2010    Post subject: Reply with quote
DEN MONKEY wrote:
Here it don't get easier than this

https://www.hi-fi-cables.com/images/cables/bi-wire-speaker-diagram1.gif

with the exception on your speakers you have the square connectors. Just push down on the tab at the bottom (spring loaded) and slide the cable in the now open hole , then release.


sorted the problem a while ago, thanks for the effort though Smile

It was more a worry about damaging the speakers than how to connect them up.

Whoever said about the speakon cables, they are really good, just a shame these speakers don't have them.
 Back to top
View user's profile Send private message You must be logged in to rate posts
