| Author |
Message |
| Darth |
This post is not being displayed .
|
Darth
World Chat Champion
Joined: 14 Mar 2008
Karma :
|
 Posted: 18:44 - 30 Jan 2011  Post subject: Valve clearance calculations check |
 |
|

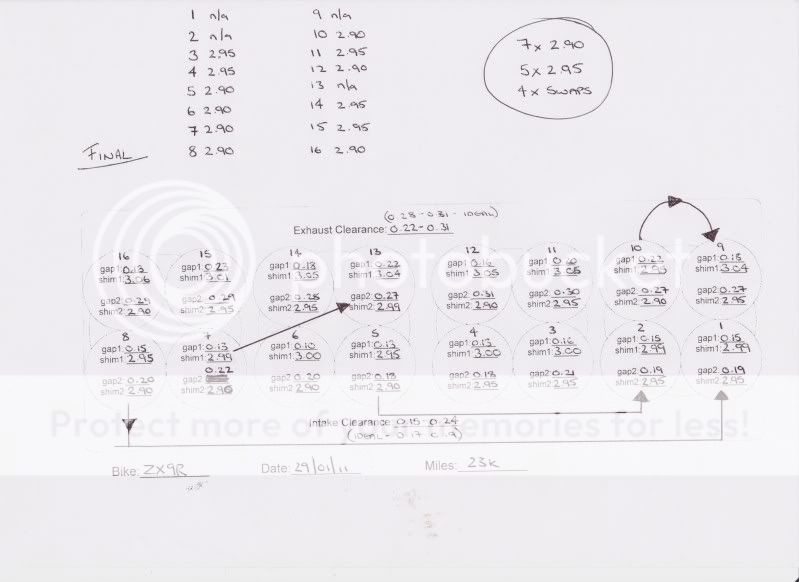

Can anyone please tell me if the calculations below look correct or if there should be anything done differently at all?
https://i54.photobucket.com/albums/g82/darthpalmer/bikes/clearances%20zx9r%20e1/Adjustments001.jpg
____________________
Harold_Shand wrote: I suppose it's like anything, you get your fingers burned when you start out, you learn from it and eventually become a complete arsehole about the whole thing. |
|
| Back to top |
   |
You must be logged in to rate posts |
|
 |
| Pete. |
This post is not being displayed .
|
Pete.
Super Spammer
Joined: 22 Aug 2006
Karma :
|
Posted: 18:58 - 30 Jan 2011  Post subject: |
|
|
No, it looks good.
____________________
a.k.a 'Geri'
132.9mph off and walked away. Gear is good, gear is good, gear is very very good  |
|
| Back to top |
 |
You must be logged in to rate posts |
|
|
| Darth |
This post is not being displayed .
|
Darth
World Chat Champion
Joined: 14 Mar 2008
Karma :
|
| Posted: 19:18 - 30 Jan 2011 Post subject: |
|
|
Cheers Pete
Just need to order the shims and try and remember how it all goes back together now!
____________________
Harold_Shand wrote: I suppose it's like anything, you get your fingers burned when you start out, you learn from it and eventually become a complete arsehole about the whole thing. |
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Pete. |
This post is not being displayed .
|
Pete.
Super Spammer
Joined: 22 Aug 2006
Karma :
|
| Posted: 19:52 - 30 Jan 2011 Post subject: |
|
|
Digital cameras for the win there! I have a battered cheap one for recording dis-assembly it's got me out of the doo a few times.
____________________
a.k.a 'Geri'
132.9mph off and walked away. Gear is good, gear is good, gear is very very good |
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| bacon |
This post is not being displayed .
|
bacon
World Chat Champion
Joined: 09 Jan 2009
Karma :
|
| Posted: 20:56 - 30 Jan 2011 Post subject: |
|
|
|
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Blue_SV650S |
This post is not being displayed .
|
Blue_SV650S
World Chat Champion
Joined: 27 Nov 2008
Karma :
|
| Posted: 21:07 - 30 Jan 2011 Post subject: |
|
|
I must be bored ... but I made a little spreadsheet to calc it all for you ... well check your numbers for you now!!
As you know, you can only get shims of 0.05, so it takes that into account. I have also gone for the LARGEST gap without going 'bust' (means longest between shimming intervals) but you could change the value to a 'middling' one if you wanted to see if it saved you a few shims ...
https://www.bikechatforums.com/download.php?id=76926
____________________
The purpose of life is to fight maturity.
Last edited by Blue_SV650S on 21:28 - 30 Jan 2011; edited 1 time in total |
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Blue_SV650S |
This post is not being displayed .
|
Blue_SV650S
World Chat Champion
Joined: 27 Nov 2008
Karma :
|
| Posted: 21:21 - 30 Jan 2011 Post subject: |
|
|
Oh and if you want to make the spreadsheet yourself then you need the following formulas:-
Cell C3 = "Ex"
Cell C4 = "0.31" {or desired Ex gap}
Cell D4 = "0.24" {or desired In gap}
Cell F7 "=IF(C7=$C$3,E7-($C$4-D7),E7-($D$4-D7))"
Cell G7 "=ROUND(F7/0.05,0)*0.05"
Cell H7 "=E7-G7+D7"
Cell I7 "=IF(C7=$C$3,IF(H7<=$C$4,"Fine","Too Big"),IF(H7<=$D$4,"Fine","Too Big"))"
Cell J7 "=IF(I7="Fine",G7,G7+0.05)"
Cell K7 "=E7-J7+D7"
Cell L7 "=IF(C7=$C$3,IF(K7<=$C$4,"Fine","Too Big"),IF(K7<=$D$4,"Fine","Too Big"))"
Copy all them down to row 22, enter your data into cols ... B, C, D & E ... and job done!!
... oh and if you are feeling ghey, you can 'conditional format' the "Fine" and "Too Big" to colour code them like I did!!
____________________
The purpose of life is to fight maturity.
Last edited by Blue_SV650S on 08:46 - 31 Jan 2011; edited 1 time in total |
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Ichy |
This post is not being displayed .
|
Ichy
World Chat Champion
Joined: 15 Jul 2005
Karma :
|
| Posted: 23:11 - 30 Jan 2011 Post subject: |
|
|
|
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Darth |
This post is not being displayed .
|
Darth
World Chat Champion
Joined: 14 Mar 2008
Karma :
|
|
| Back to top |
| |
You must be logged in to rate posts |
|
|
| Blue_SV650S |
This post is not being displayed .
|
Blue_SV650S
World Chat Champion
Joined: 27 Nov 2008
Karma :
|
| Posted: 08:57 - 31 Jan 2011 Post subject: |
|
|
That was an oversight, I had correctly refereed to the cells in the required shim calc in F7 so it was generic, but not int the 'check' - my bad.
In my defence, I had actually 'named' the cells in my version so it was foolproof - they were referred to as "InGap" and "ExGap" in my sheets formulas - however, thought cell naming was getting too complicated to explain in my post here, so converted my formulas to what you saw and made the non-generic mistake buy putting in the values not cell ref in the check at that point!
I also just noticed that I didn't give the final check formula in L7  .
But never fear, both have been rectified in the original post now
____________________
The purpose of life is to fight maturity. |
|
| Back to top |
| |
You must be logged in to rate posts |
|
 |
Old Thread Alert!
The last post was made 14 years, 339 days ago. Instead of replying here, would creating a new thread be more useful? |
 |
|
|
Help & FAQs
Search BCF
Members
Groups
Events Calendar
rating
rating
