Fitting ER-5 crash bars to a KLE-500

[Vracktal]

So i've been looking to get a set of crash bars for my KLE 500 for a while, but I have a problem. Scouring Google, there appears to be only be two designs available, both of which intrude into the knee and leg room on the bike and don't really protect any of the engine parts like the crankcase or clutch/brake pedal.

https://www.moto24.org/media/catalog/product/cache/2/image/344ff7405533366c8801f83da5181707/s/b/sbl_08_327_100_201323765297-11161.jpg
https://www.heed.com.pl/allegro_img/Moto/K_kle500.JPG

I'm 6'4", and when I sit on my bike my knees go all the way to the end of the recessed bit under the tank. So neither of the 'proper' options will fit, but I was wondering, the ER-5 shares the same engine as the KLE-500 so would it be possible to use a set of ER-5 bars instead? Has anyone tried this? I know i'd probably have to cut a hole in either side of the the sump guard for the lowest mounting point but i'm okay with that.

Based on lots of google image searching I think these bars mount in the right places, but don't want to spend money on a set unless i'm more confident... If anyone has an ER-5 on crashies can they photo the mount points, that'd seal it for me.

https://i1080.photobucket.com/albums/j328/Vracktal/kle500er5comparison_zps37c0732c.png
____________________
2007 BMW R1200R: On road
2009 BMW G650X Challenge: On road
1975 Norton Commando 850: Off road, awaiting recommissioning

[hmmmnz]

id say find a set of second hand ones,
if they don't end up fitting, chuck them back on ebay, no love lost,
i think there is a good chance they will fit just looking at numerous photos of both bikes,
although the kle exhaust may also get in the way
____________________
the humans are dead
I kick arse for the lord
Wiring Diagrams BIDNIP it bitches

[iMark]

My bars are different from those ones hmm

https://fbcdn-sphotos-f-a.akamaihd.net/hphotos-ak-snc7/579501_10152184010480075_1866201103_n.jpg
____________________
K8 GSXR 1000
"G" : you got him to have a look at a forum which seems to have established a picture of an erect penis in a cat's mouth as it's mascot and thought he might consider it ok?

[ms51ves3]

You owe me some money for the use of the pictures of my bike

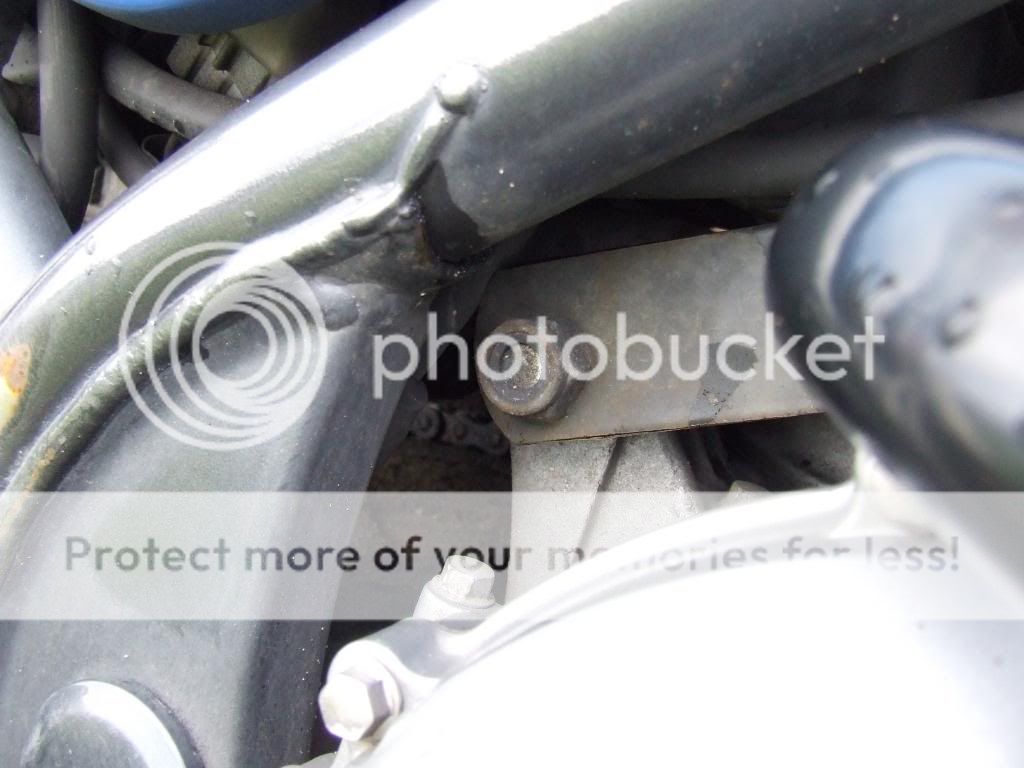

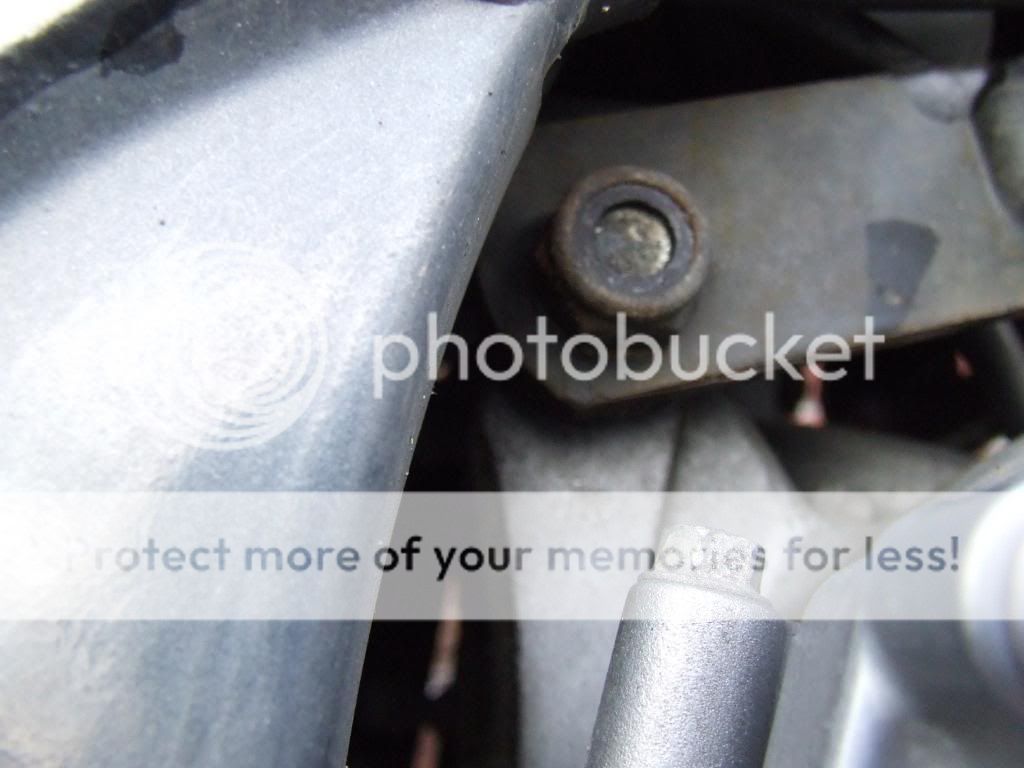

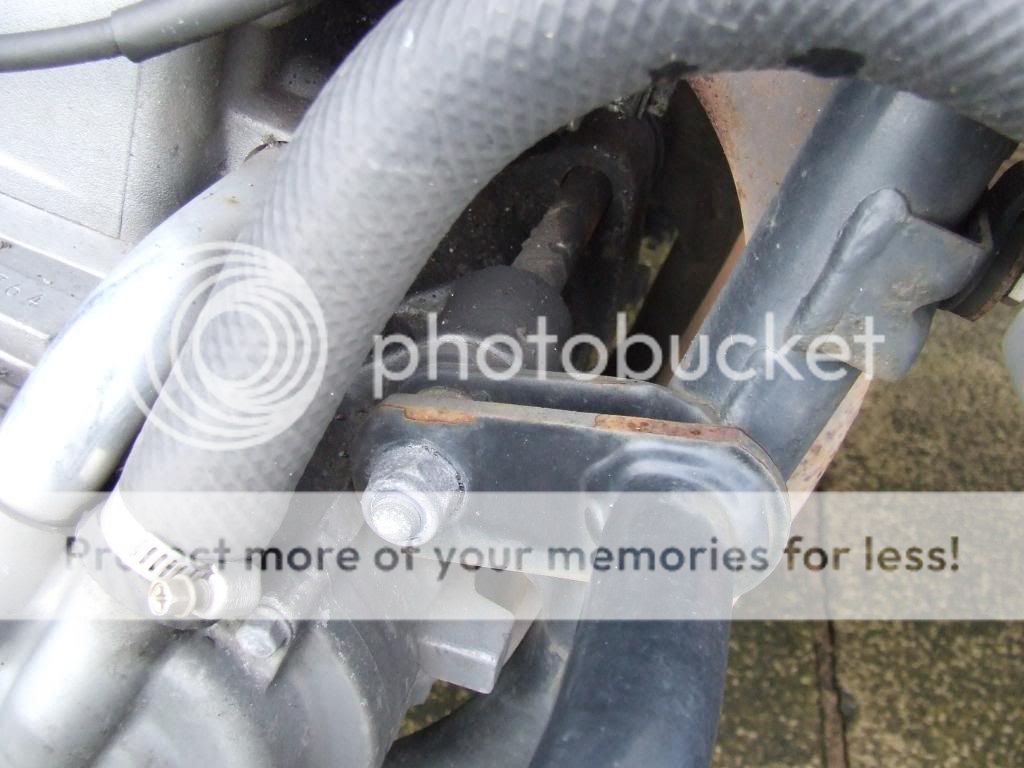

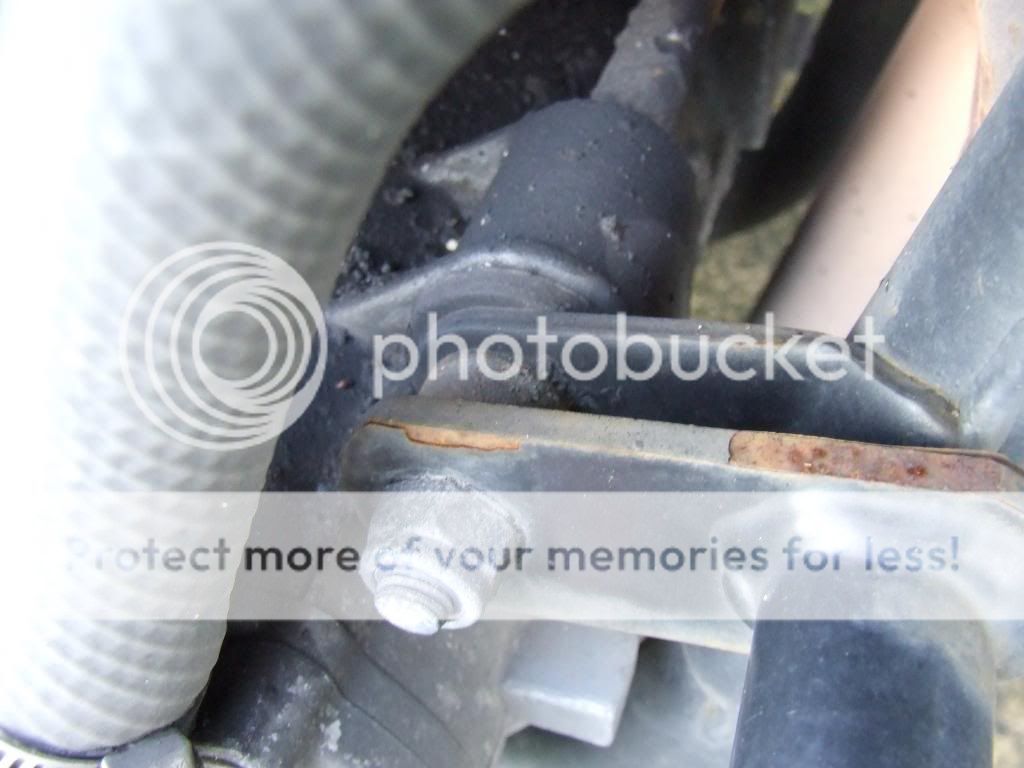

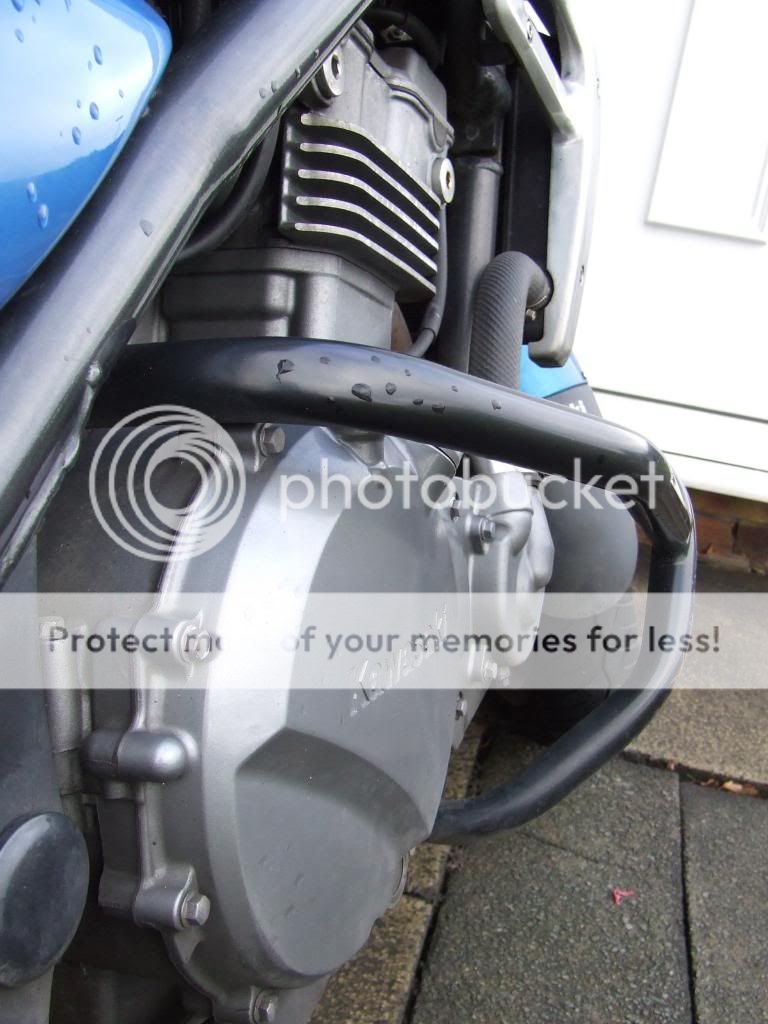

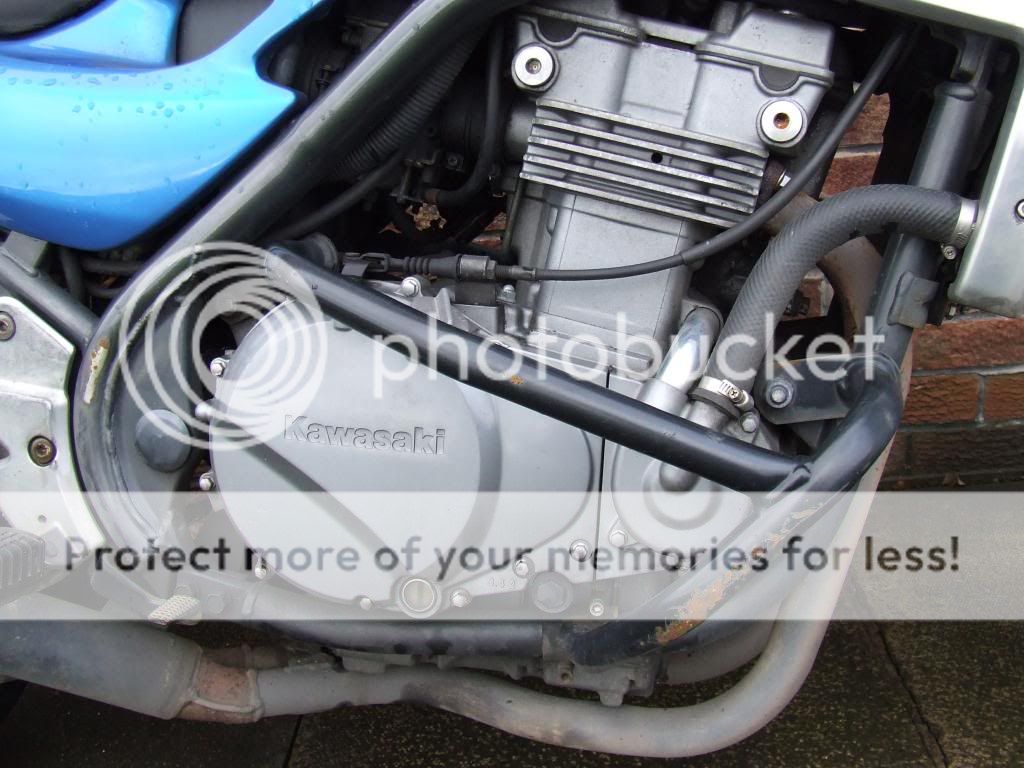

I can take some better pictures of where the crash bars mount tomorrow if you want me to.

[Vracktal]

[ms51ves3]

Will do

I didn't buy them, but as far as I know they're Renntec crash bars.
Clicky

[iMark]

[Vracktal]

[ms51ves3]

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3876.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3875.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3873.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3872.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3871.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3870.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3869.jpg

https://i15.photobucket.com/albums/a376/ms51ves3/ER5%20Crash%20Bars/DSCF3868.jpg

[Vracktal]

Perfect.

Thanks ms51ves3! From the looks of things the upper mounts are both the same as on the KLE, the lower mount is the only thing worrying me but I figure it's worth a punt. Just need a decent used set to come up on ebay/gumtree now!
____________________
2007 BMW R1200R: On road
2009 BMW G650X Challenge: On road
1975 Norton Commando 850: Off road, awaiting recommissioning

[Vracktal]

Bumping a month old thread with results- Finally managed to buy a pair of cheap ER5 crash bars, and offered them up to the KLE. tl;dr they fit but some tampering is needed.

https://i1080.photobucket.com/albums/j328/Vracktal/Kawasaki/103_2049_zps2d6f8eea.jpg
All the mounts are in the same place.

https://i1080.photobucket.com/albums/j328/Vracktal/Kawasaki/103_2052_zps8054e647.jpg
https://i1080.photobucket.com/albums/j328/Vracktal/Kawasaki/103_2058_zpsbe3c1536.jpg

Lower mount fits fine both sides. Rear mounts fit fine too, although on the right hand side one it is necessary to relocate the brake-light switch for the footbrake as the bars fill the space it fits in.

https://i1080.photobucket.com/albums/j328/Vracktal/Kawasaki/103_2056_zps4087897b.jpg

Also, you need a longer front engine bolt in order to fit the front mounts. I don't have one to hand but will go shopping for one later in the week, the bars are rock solid even with only 2/3 mounts. Also, there's a slight misalignment in the hole for the front mounts but i'm pretty sure this is down to the bars being a bit shagged rather than not fitting. Either way, it's only a few mm out so i'm pretty sure I can just hammer it into alignment when I get the new longer bolt.

https://i1080.photobucket.com/albums/j328/Vracktal/Kawasaki/103_2053_zpsca277111.jpg

So, conclusion, ER-5 bars fit the KLE-500 as long as you don't mind relocating the rear brake switch and removing the sump guard. (will be modding that to fit with the bars on by cutting a section of it out either side at a later point aka when I can be arsed)
