When I rebuilt the carbs on my Bandit 400 (one of the many known weak points of the bike) I managed to snap the end off the enrichment circuit plunger, this meant that cylinder 4 wouldn't fire until the bike had been running for about five minutes. Whilst I was happy that it actually fired on four cylinders eventually, as soon as I started it up from cold for my dad he didn't seem too impressed especially as it was relatively warm at the time, best get it sorted then...

The offending plunger. Please don't ask, the shagpile bench is not for sale!

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2914.jpg

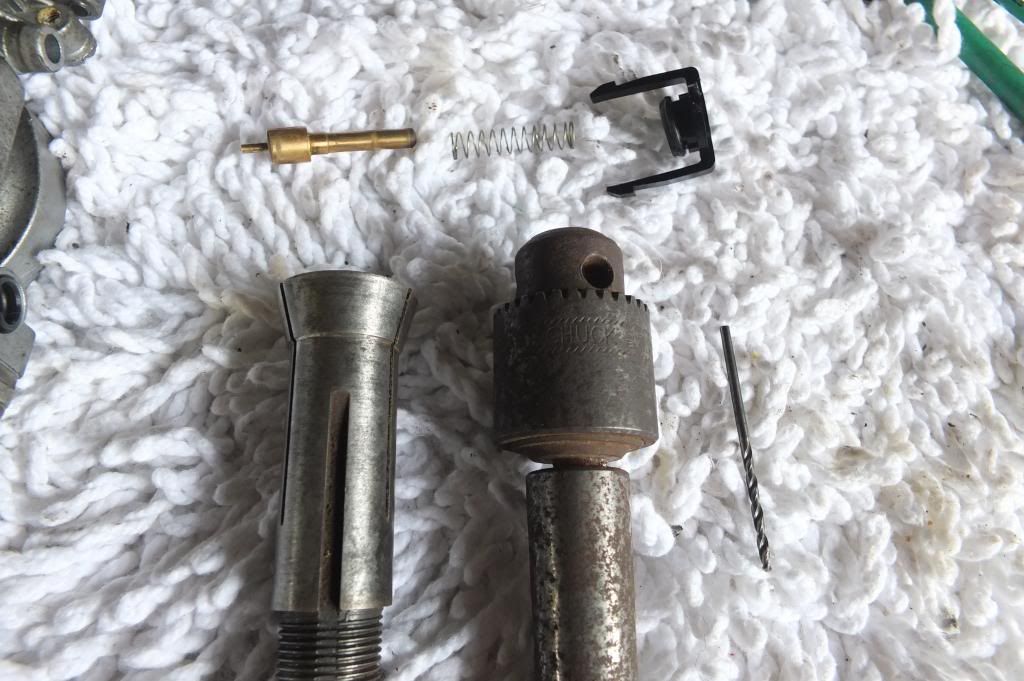

Arseholes, this looks fiddly. Luckily I had a collet the same size as the plunger so that was straightforward, pin chuck and 2.5mm drill bit to the right.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2913.jpg

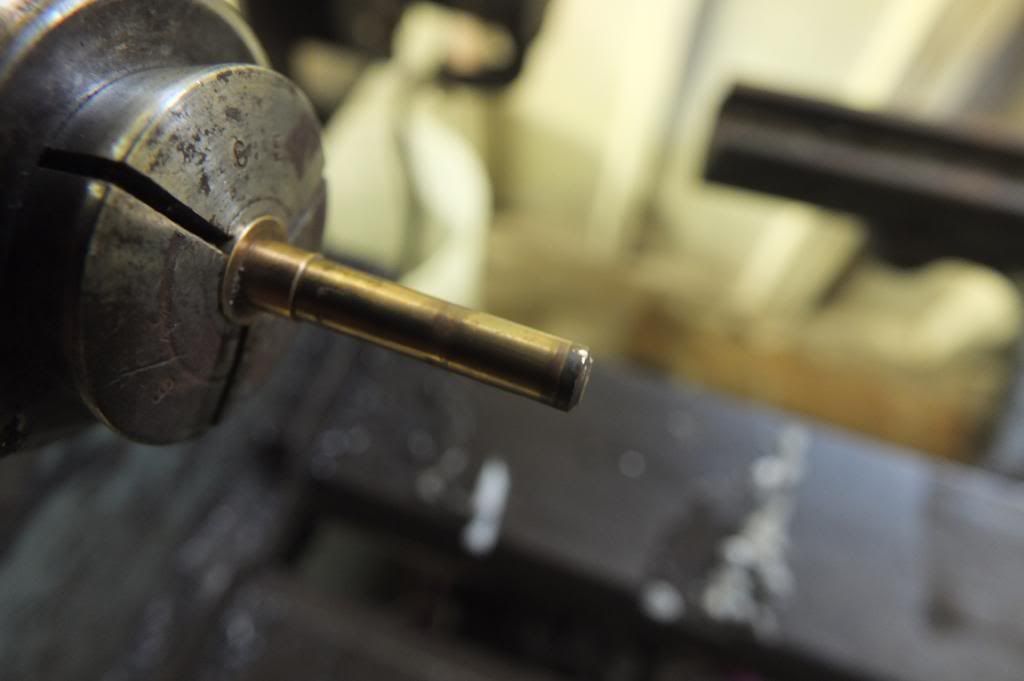

Fitted up in the collet, ready for action.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2917.jpg

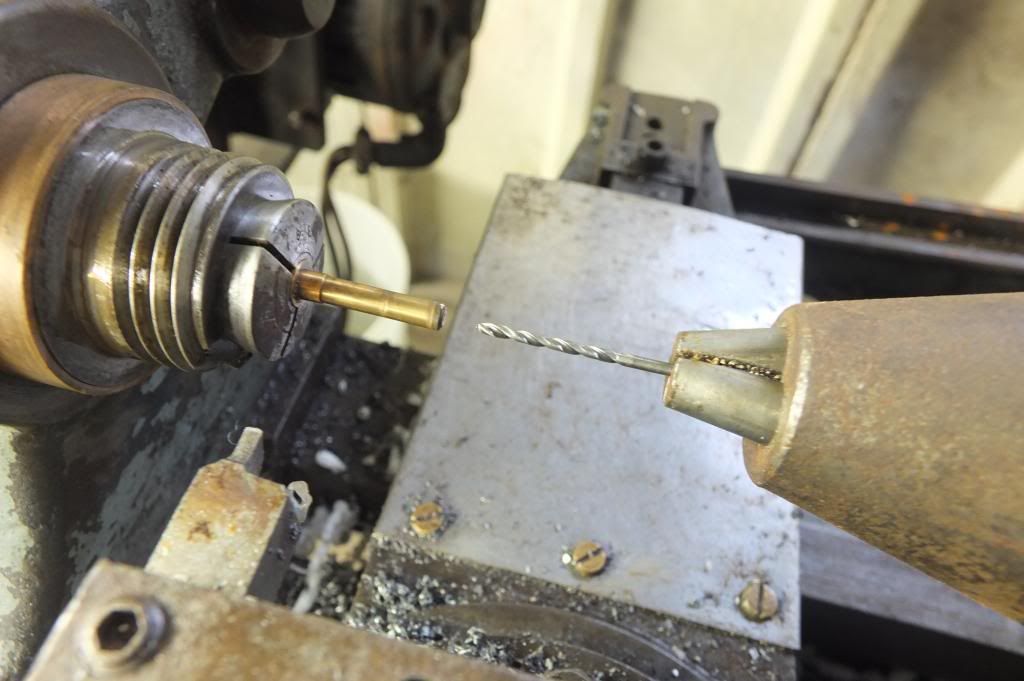

Drill bit in the tailstock, ready to drill.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2919.jpg

Splendid! Slightly eccentric due to a run-out issue somewhere but good enough for this job.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2923.jpg

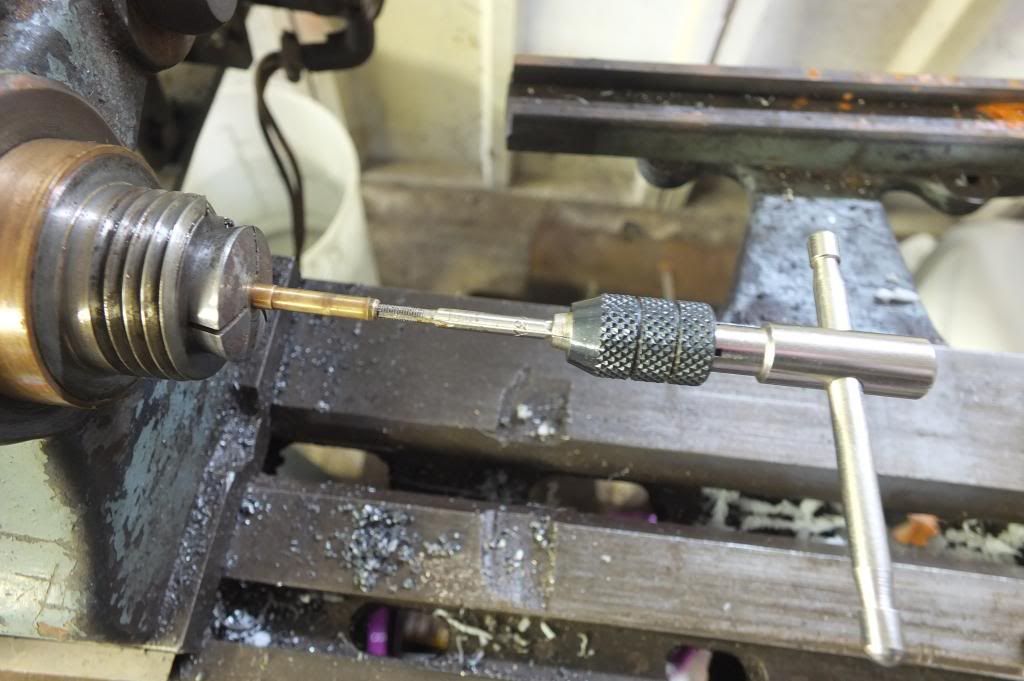

Tap the 2.5mm hole out to M3x0.5mm, no chance I'm trying to cut an M3 internal thread on the lathe, I'm at my limit as it is...

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2925.jpg

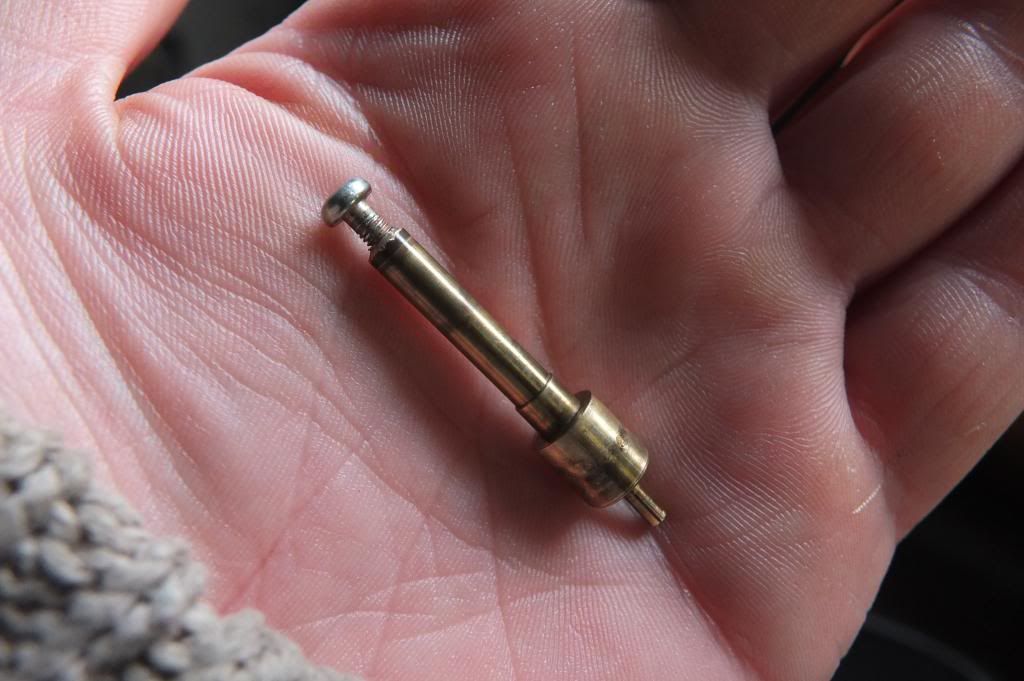

Sorted! That could have gone a lot worse.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2926.jpg

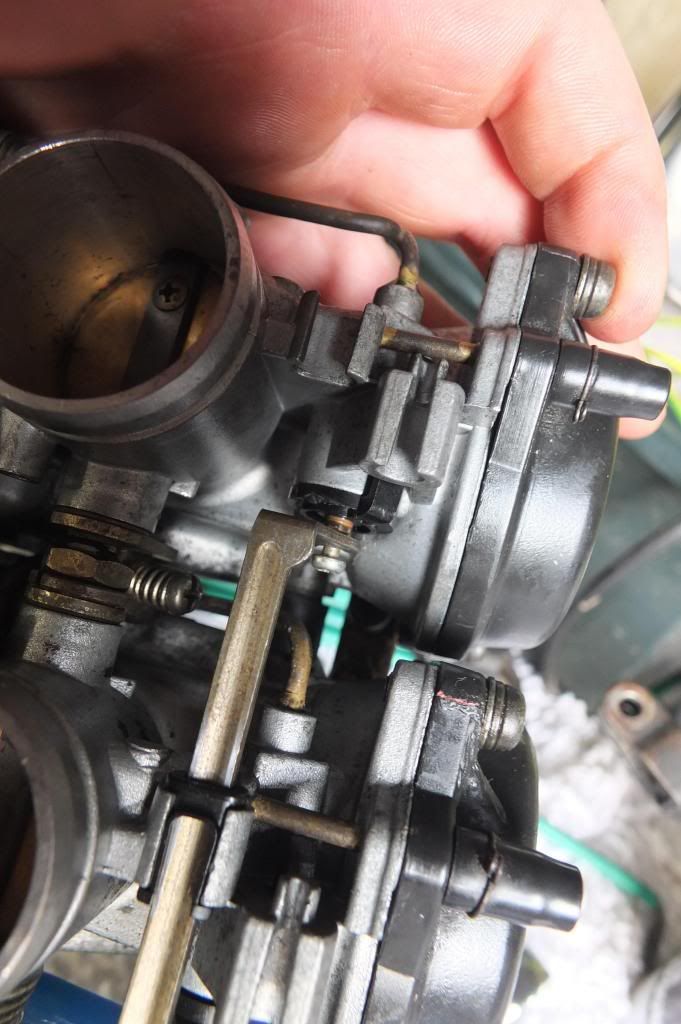

Back home with choke in the off position.

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2928.jpg

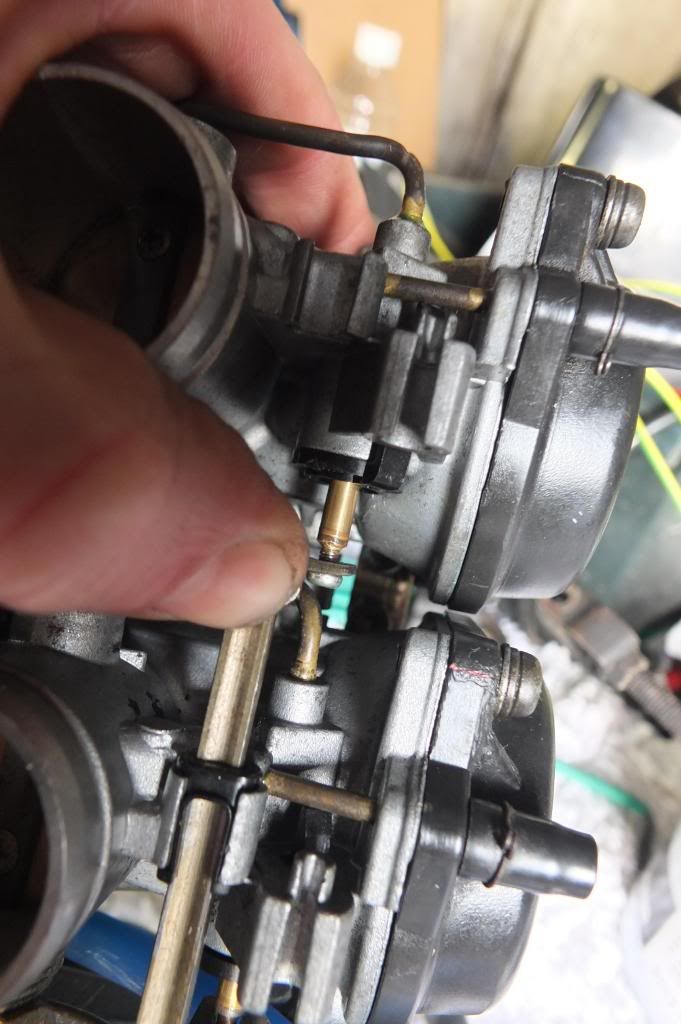

And with the choke on...

https://i689.photobucket.com/albums/vv258/L339EFX/DSCF2929.jpg

So that's my first productive job with my new lathe, very basic but I'm happy that I didn't balls anything up and hopefully I'll have better cold starting when they go back on.

Feel free to stick any lathe/mill/bobble hat related posts in here for inspiration, for anyone thinking of getting a lathe then get one bought, I've been fobbing it off for years but since having it I've got stack of things lined up for it when my abilities improve.

Tl;Dr - Lathe n00b bodges carb back together.
