Wiring lights into a top box.

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

I'm thinking about fitting lights to my top box. It's a Givi V46, I know they do a brake light kit, but it's not that I'm after. I'm thinking something like this:

https://youtu.be/kNuLyxDf5Ms

I'm thinking coloured LED strips, anyone got any recommendations?

What sort of connector can I use, needs to be waterproof and easy to plug and unplug?

Something like a trailer socket would be good, but much smaller.

Needs to have 5 pins (earth, tail, brake, left, right).

The Shaggy D.A. · Super Spammer Joined: 12 Sep 2008 Karma :

Any good?

https://www.ebay.co.uk/itm/Sets-Kits-Electrical-Waterproof-Connector-1-2-3-4-5-6-Pin-Way-seal-Car-Boat-wire/151989337465
____________________
Chances are quite high you are not in my Monkeysphere, and I don't care about you. Don't take it personally.
Currently : Royal Enfield 350 Meteor
Previously : CB100N > CB250RS > XJ900F > GT550 > GPZ750R/1000RX > AJS M16 > R100RT > Bullet 500 > CB500 > LS650P > Bullet Electra X & YBR125 > Bullet 350 "Superstar" & YBR125 Custom > Royal Enfield Classic 500 Despatch Limited Edition (28 of 200) & CB Two-Fifty Nighthawk > ER5

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

I'm unsure how well those would hold up. When I've had to keep unplugging those in cars, they end up getting broken...

stinkwheel · Bovine Proctologist Joined: 12 Jul 2004 Karma :

Can you solder? SP17 connectors.

https://i48.photobucket.com/albums/f216/stinkwheel/Trailer/DSCN0128.jpg
https://i48.photobucket.com/albums/f216/stinkwheel/Trailer/DSCN0133.jpg
https://i48.photobucket.com/albums/f216/stinkwheel/Trailer/DSCN0154.jpg
____________________
“Rule one: Always stick around for one more drink. That's when things happen. That's when you find out everything you want to know.”
I did the 2010 Round Britain Rally on my 350 Bullet. 89 landmarks, 3 months, 9,500 miles.

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

That looks likely! Do you know the name of that type of plug?

stinkwheel · Bovine Proctologist Joined: 12 Jul 2004 Karma :

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

Just realised you had linked to them above your photos. I was too busy staring at the pretty pictures to notice! Laughing

jakebrownbass · Renault 5 Driver Joined: 14 Feb 2016 Karma :

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

That's looking good! Where did you get the LEDs, and would you say they are a good brightness? (Always hard to tell in photos)

Ted · World Chat Champion Joined: 26 Mar 2006 Karma :

Had a quick look on eBay and found these:

https://m.ebay.co.uk/itm/4-X-5050-LED-Strip-Light-12V-Car-Van-White-Blue-Red-Green-Warm-White-10-30-cm/262729654098

I was thinking 10cm ones,
- x4 red for tails,
- x4 white for brake (lens is red, figure white will show up brighter)
- 4x orange for indicators

Would that be enough?

Hahadumball · World Chat Champion Joined: 07 Oct 2015 Karma :

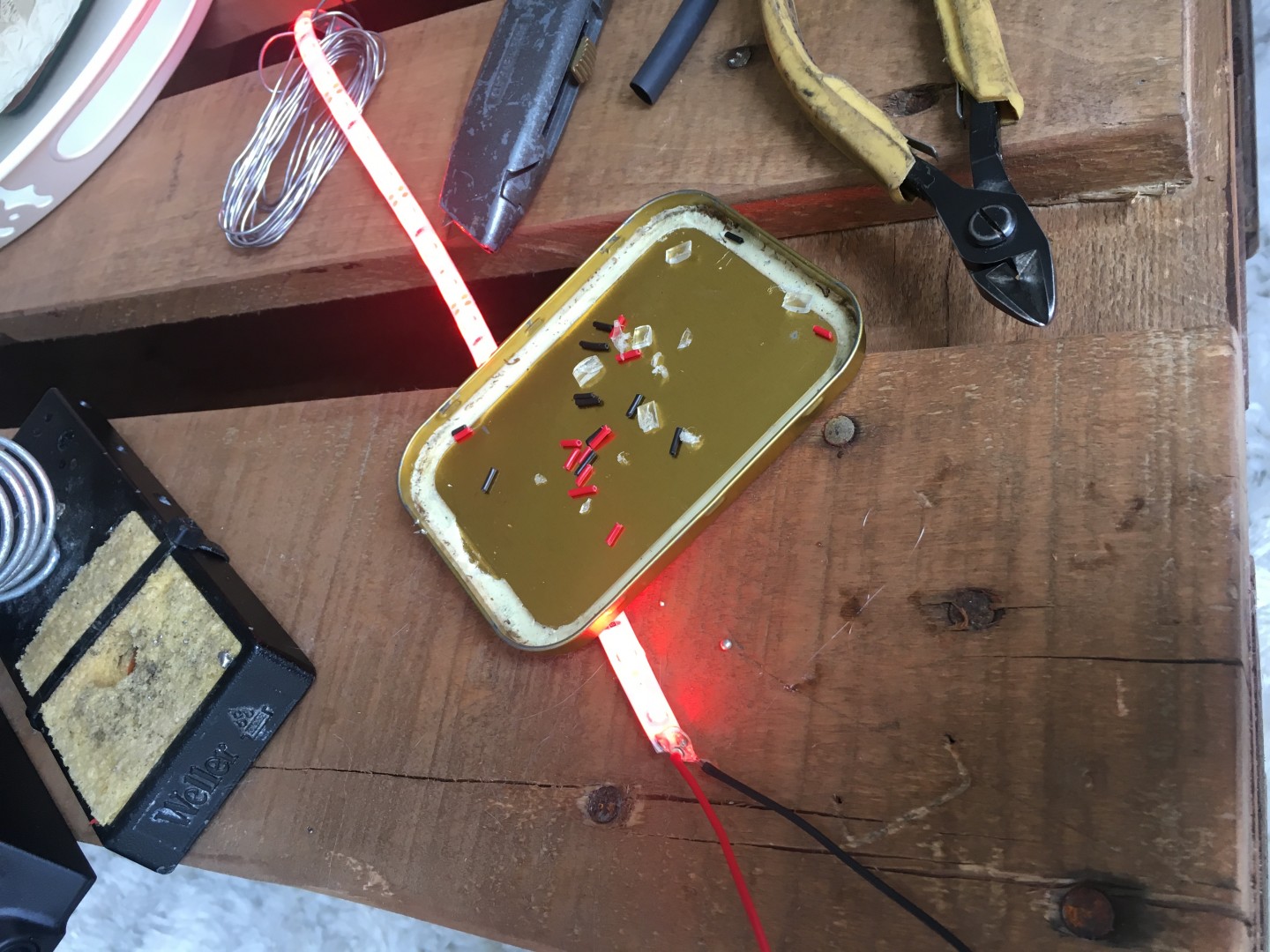

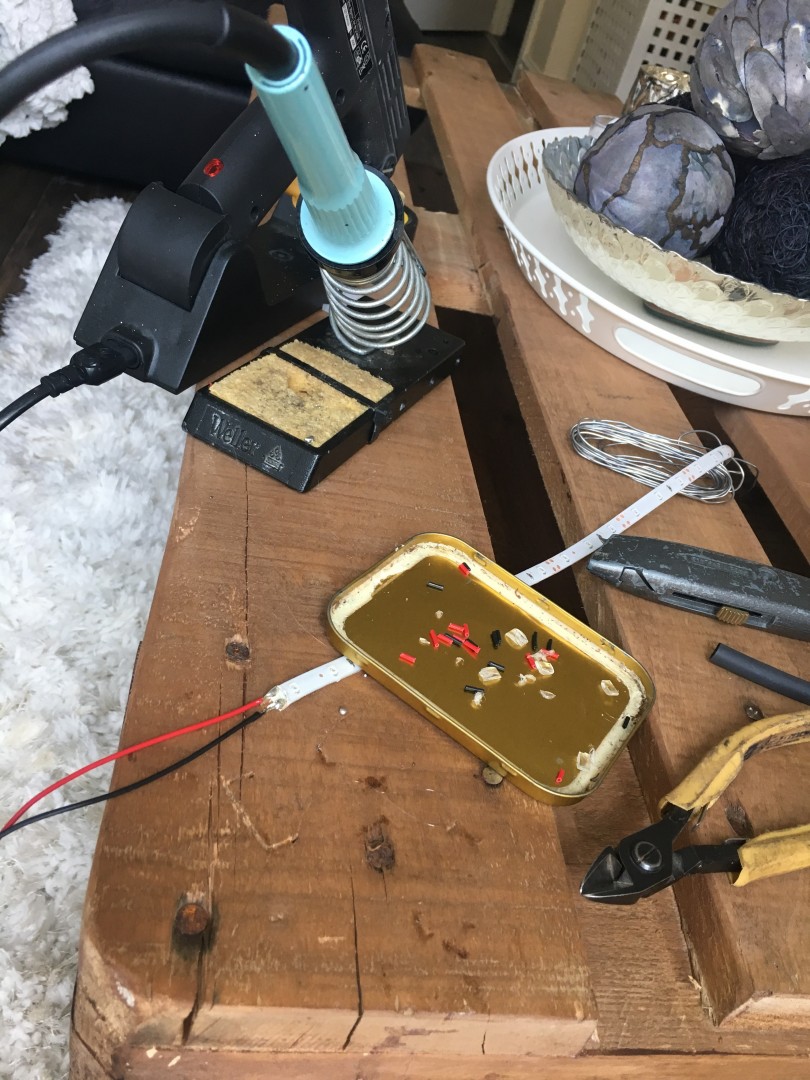

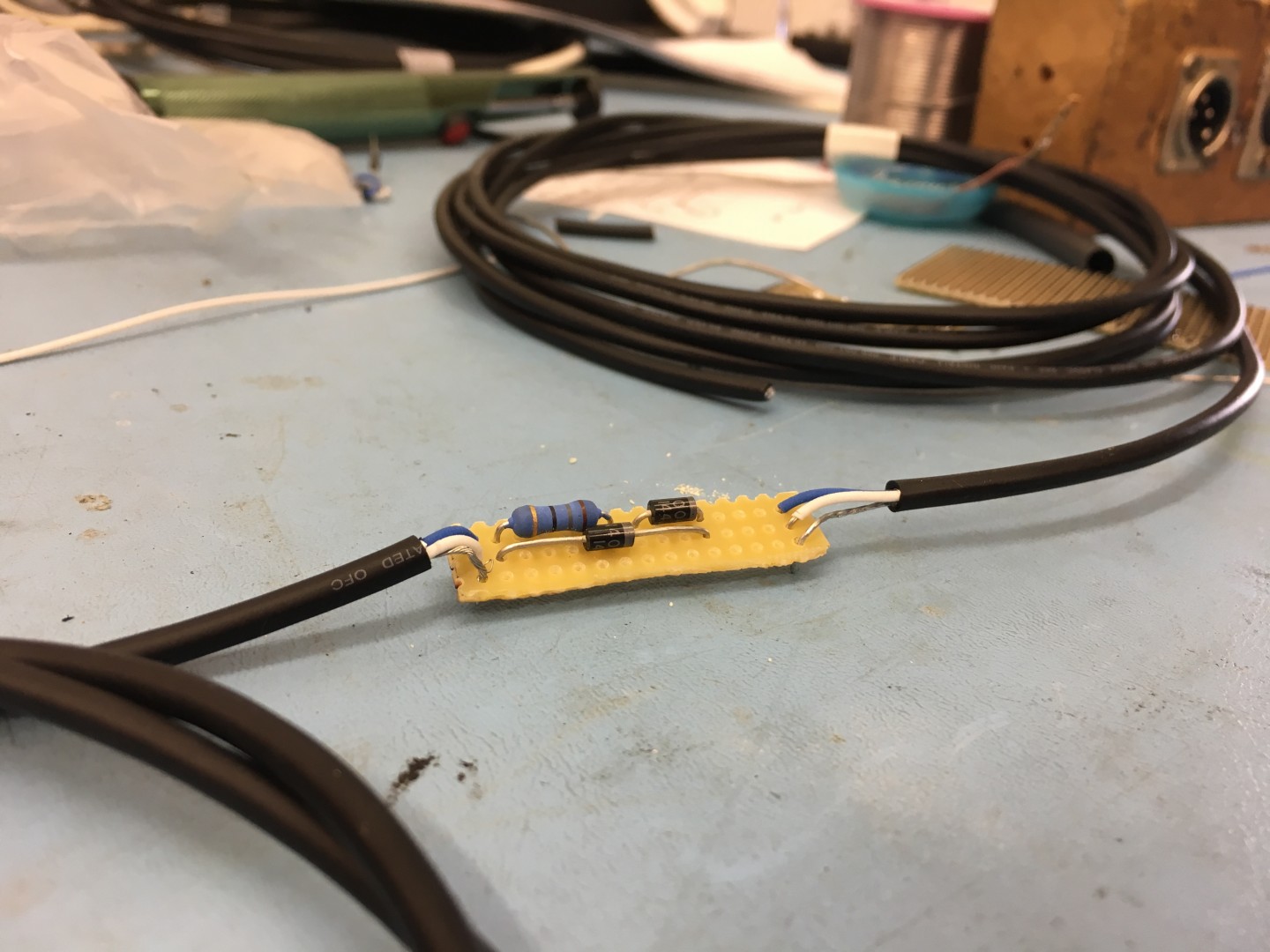

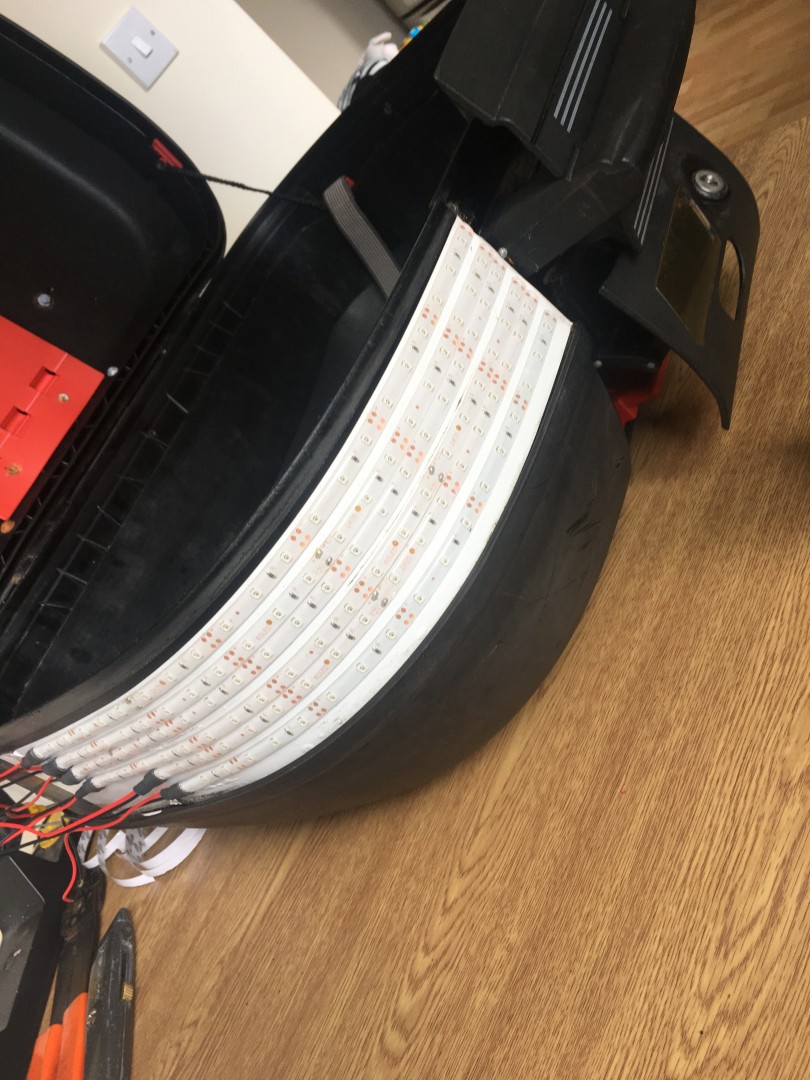

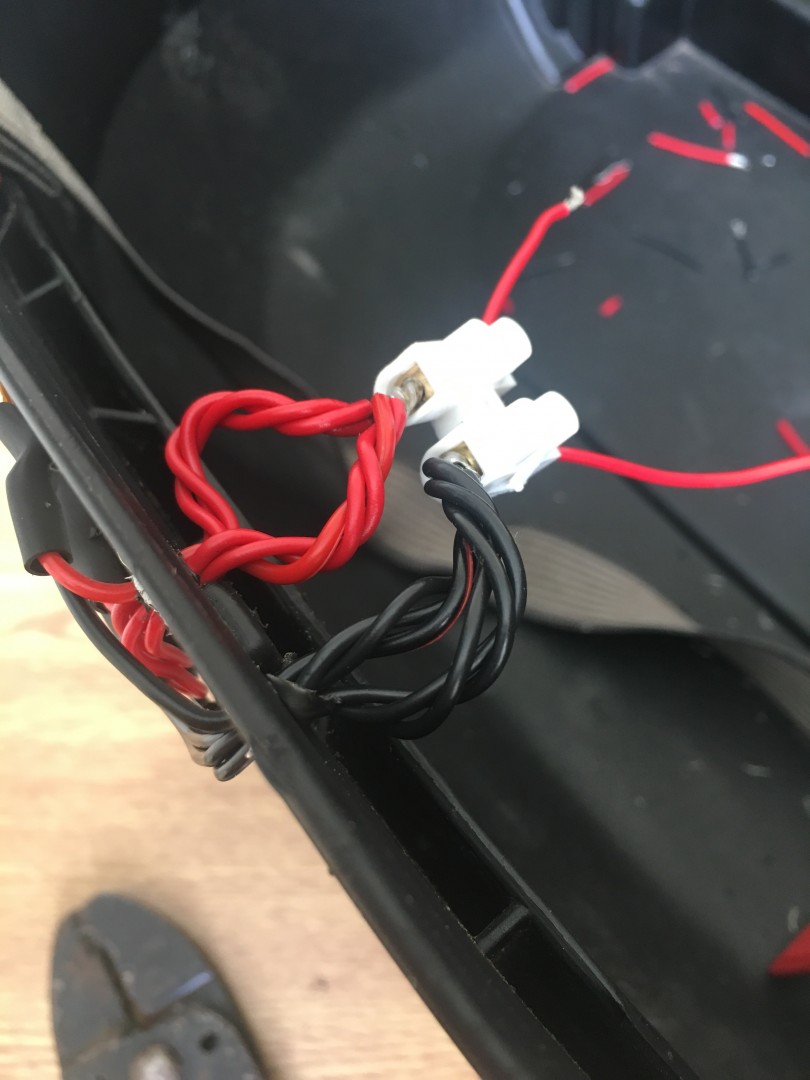

i made my own on my old topbox, wired to brake light using a contact switch and contact terminals.

was ite.
used blue wire for testing coz pikey

https://www.youtube.com/watch?v=CxmunEUJ25o

i also made skywaterfriend

https://www.youtube.com/watch?v=VyGQazXv6gU

donate to my crowdfunding for never release
