How Do I Remove This?

[johnsmith222]

Hi guys.

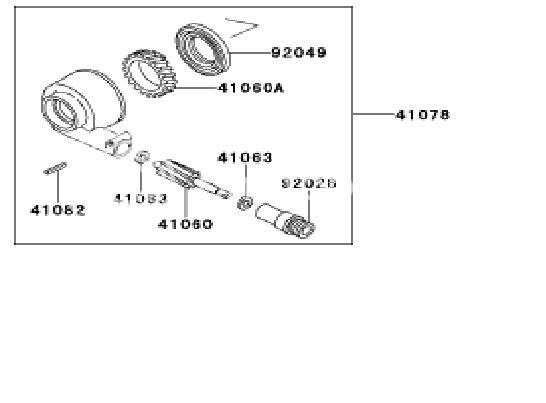

I was wondering if anyone could help me. My speedo drive is knackered.

I have all the bits to form one fully functioning speedo drive. The only problem is, I need to replace the worm (41060) but don't know how to do it.

There's a "pin-spring" (41082) that obviously needs to be removed but don't know how. It doesn't have a screw head on it or anything like that.

Thanks for any help. The bike is a ZZR600 and shares a similar set up of speedo drive to other Kawasaki bikes.

https://i14.photobucket.com/albums/a324/david_m213/speedo.jpg

Thanks for any help.

[Nick_Giles]

Going to take a guess here.

Is 41082 a 'drift pin' ?? i.e. nothing more than a tight fitting peg that is tapped out and back in again.


Nick
____________________
Peter Cook: "I have learned from my mistakes, and I am sure I can repeat them exactly".

[johnsmith222]

[Casper]

Are you sure 41063 is not threaded? Stick a small alen key in, it might be or twist out.

[johnsmith222]

[andym]

Something looked very familiar about that speedo drive... turns out it's the same one they used on the GPz 750

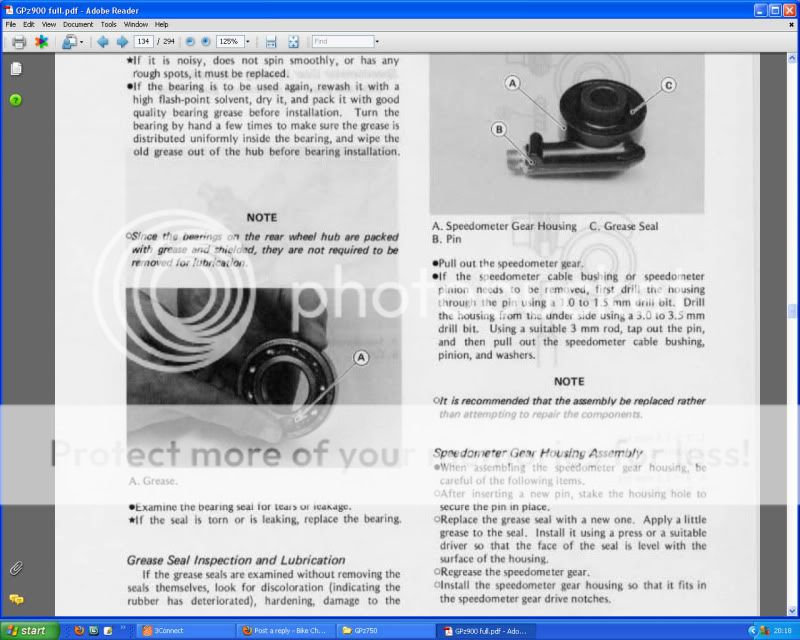

SOOOO.... from the 900 manual:

https://img.photobucket.com/albums/v320/andy36586/speedogearhousing.jpg

[Ariel Badger]

Try drilling it from behind (where there would have been a hole if they had drilled all the way through) and try drifting it out.
____________________
Bikers make great organ donors, get 115 on your licence today.

[Ariel Badger]

Beat me to it Andy!
____________________
Bikers make great organ donors, get 115 on your licence today.

[andym]

Just had a thought.... I might give it a bash on mine and see if it would work... was thinking maybe try finding a small screw and screwing it into the pin then use a claw hammer to pull it out (might need a quick spray of WD40 first though (the pin not the hammer))

[johnsmith222]

Thanks guys. Karma all round. I'll do what it says in the haynes manual.

for all.

[johnsmith222]

[andym]

it wouldn't be the first part I've damaged by experimenting LOL

I did have it off the bike a few weeks ago and thought about stripping it and cleaning it... I decided to just spray it then wash it out with white spirit then repack the grease after a few days to dry out.

I've found there is a lot of things the manual says you 'should do', doesn't always mean it's the quickest or easiest way (as I've found out quite a few times... but then I'm sure in the manual they aren't left with a large tub of bolts afterwards)

[Johnser]

"pin spring" sounds like another name for a roll pin to me?

essentially a piece of sprung steel rolled into a tube:
https://www.partsreloaded.com/images/rollpin.jpg

if it is one, just the sproing of the pin will be holding it in place. a drift of the correct diameter will help (sacrifice a drill bit the correct size?) along with heat, plus gas and patience.

Of course it may not be a roll pin... but if it is...

[bikenut]

hi dude,

a soild pin ( tapered ) or roll pin ( hole in middle, sprung )??

in blind hole?

drill hole same size as pin on blind side, and tap out.

take your time....dont rush it and all will be well.
