Head removal on a Honda CG/XR? (update:head gasket replaced)

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

my head gasket is leaking oil on my XR, How hard is it to remove the head of the engine to replace the leaking gasket? Anyone done this on a CG or XR before?

Got the replacement gasket, just need to know how to take the head off as I'v never done this before.

Thanks for any help guys!
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

pepperami · Super Spammer Joined: 17 Jan 2010 Karma :

Sorry I cant help as I`ve never done it either Sad

.

However when you get the advice and start to do it , post up LOTS of pics and give us a write up please Thumbs Up

____________________
I am the sum total of my own existence, what went before makes me who I am now!

Frost · World Chat Champion Joined: 26 May 2004 Karma :

It's all just undoing bolts which is really easy, except for the cam chain assuming it has one, which it may or may not depending on the year of the bike. You might need a chain riveter to split the chain. Putting it all back together is just the reverse, but you must tighten the bolts on the head in a cross pattern to squash it down evenly

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

its a push rod engine so it should be a VERY simple job..... I hope! I will add lots of before and after photos for sure! I just need to know how to take the head off! there seems to only have on bolt holding the top part of the engine on, on the right hand side!
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

theres like another 3 in the valve area,note which ones are which as one has a cut away for the lube system

sharp stanely knife to get the gasket off Thumbs Up

____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

thanks a lot mate, I'v JUST worked this out by looking at this https://cgi.ebay.co.uk/Honda-CG125-CG-125-2006-Head-Camshaft-/110683334693?pt=UK_Motorcycle_Parts&hash=item19c53da825#ht_500wt_1156
lol

Will I need to take off the tank to get the head off?Thanks rob for replying!
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

I take it that it is a Cylinder Head Gasket which I need to replace?
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

erm we've done it without taking the tank off,but might be easier

ermm should be the head gasket,i replaced the base gasket on mine aswell but my engine was 19 years old haha
____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

Right I did it and it went really well! Push rod engines are so bloody simple to work on. I ended up having to take the complete head off because on of the push rods slipped off its bottom holder when I was putting it back together.

took me about 3 hours all in all because you have to strip everything off on a XR.

Put it all together, went for a 20mile run and yay no leaks and the engine sounds sweet as ever!

I will upload the photos i took later, thanks for your help rob!
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

awesome

did ya do the valve clearances when you put it back together?
____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

pepperami · Super Spammer Joined: 17 Jan 2010 Karma :

Write up and photos please Thumbs Up

Keep it nice and simple with a lot of explanation for those of us who would like to learn from your exploits Smile

____________________
I am the sum total of my own existence, what went before makes me who I am now!

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

truslack · World Chat Champion Joined: 08 Apr 2007 Karma :

What year of XR is it? Could have sworn most were cam chains Confused

____________________
Current: Suzuki RG 125 Gamma, Honda H100, Triumph Tiger 800XC, Suzuki SV650 (minitwin)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

truslack · World Chat Champion Joined: 08 Apr 2007 Karma :

pepperami · Super Spammer Joined: 17 Jan 2010 Karma :

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

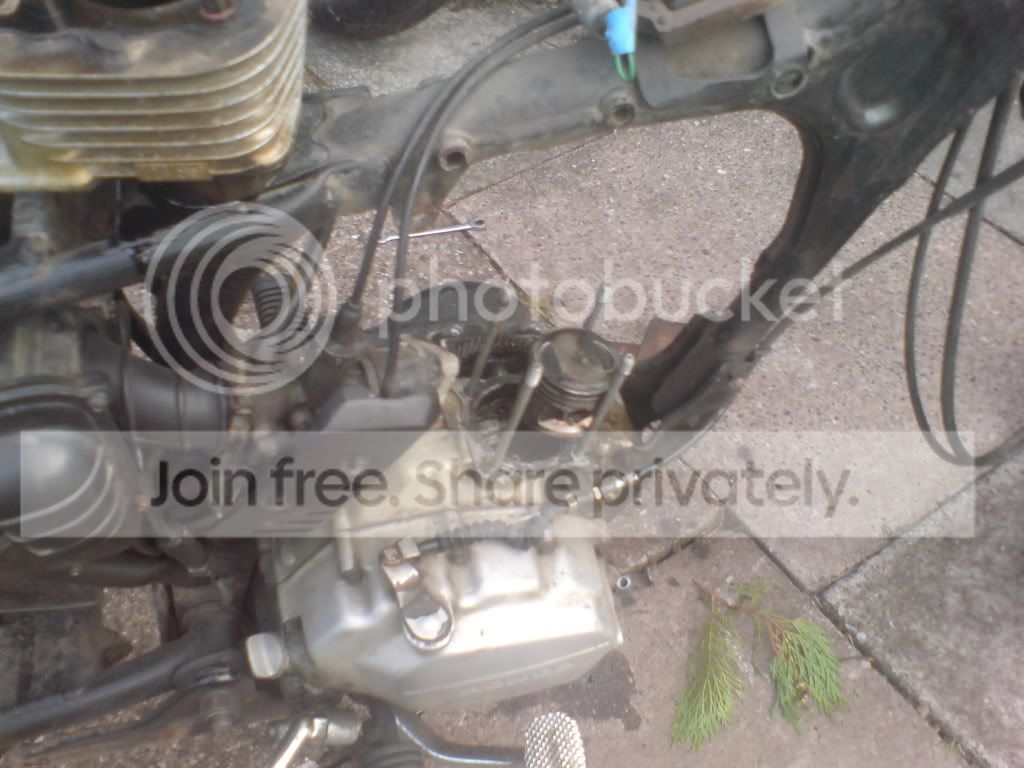

https://i825.photobucket.com/albums/zz176/robyarr/DSC00774.jpg

close enough Thumbs Up

____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

Simple guide:

Strip down bike including the top engine mount which is bolted to the frame by to bolts which are covered by 2 rubber protectors

undo 3 bolts to remove the top cover

undo 3 more bolts which keep the rocker thing in place. Remember to hold onto the 2 push rods as you remove the rocker.

undo 4 more main bolts which are under the rocker unit

Slide the head up off holders

Clean both parts of the heads

replace gasket

put the bitch back together, just remember when putting the rods back in that the rods go into the bottom part of the engine at an angle!

Simples!

Just remember I'v never done any form of engine work like this before now and I found it pretty simple. It is ALMOST as simple as a 2 stroke engine as you cannot mess the timing up.

Any questions I will do my best to answer them! Hope this helps anyone else who done needs this done.

I was quoted £120+ vat for a shop to do this job AND i would of been without the bike for 3 weeks!

Cost me.... £10 for the gasket and 3 hours of my time!

50miles since i done the job and its not leaked at all Very Happy

____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

Rob, what are the cables leading the the carb? I broke off one of the connectors leading to the carb. The bike still runs like it did before so it cant be too important can it?
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

the ones with green and red wires?

just the carb heater thing
____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

yeah i thought that, may have running problems in the winter?
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

how bad are they ?

i has a old loom i could chop the connectors off and post them to ya if you want
____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

kingsknight · World Chat Champion Joined: 21 Jun 2003 Karma :

its the part which bolts onto the carb, snapped clean off from the rubber, i cant repair it!

That would be amazing if you could do that for me mate!!!
____________________
TS50 (sold) NS125F (sold) NSR125R-K (write off after 2 crashes) CG125 (nicked) XR125L-3 (Sold )-: ) DR125SM '11 (sold yay) XL125V '12 (In love with this bike) XT600E '04 (fun on the dirt)

N cee thirty · Banned Joined: 31 Jan 2010 Karma :

https://i825.photobucket.com/albums/zz176/robyarr/DSC00906.jpg

is it them or something else? haha

confusing me
