No main beam - but sidelights and pass?

[garth]

Hi

More hornet issues.

Main/Dipped beam doesn't work.

The stop and tail do, the pass button does, the sidelight does.

Fuses look fine, bulb is fine, switches look ok, I've sprayed some WD in there anyway.

Any ideas?!
____________________
You ain't a has been if you never was

[andym]

have you checked the bulb itself?

[garth]

Yes, the 'pass' button works. This means, if nothing else, main beam works on the bulb.
____________________
You ain't a has been if you never was

[G]

Get your multimeter out and get'a'pokin!

[garth]

[G]

[garth]

Don't think the MOT man will like that.

Speaking of which, it ran out today.
____________________
You ain't a has been if you never was

[P.]

Erm...

How does the light on hornet work.

Do you have a small side light and a big bulb with dipped and high beam. Pretty sure the "Pass" is the full beam part of the bulb. So having the bulb swapped out might sound stupid but I'd swap it out..

I remember when I used G's bike the pass button didnt work.. and I could never get full beam Could be spastic though.

[garth]

Small side light

Big bulb for main and dipped

Pass button works = High beam works

High beam does not work on the button
____________________
You ain't a has been if you never was

[andym]

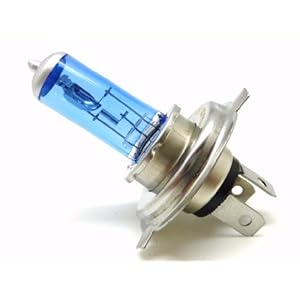

Just had a look at the bulb for a hornet... there are 2 elements in there, the pass light uses the full beam, I suggested replacing the bulb because the dipped light element could have blown...

https://ecx.images-amazon.com/images/I/41dRGvS7czL._SL500_AA300_.jpg

[andym]

Sorry you had replied before I got there.

did you check for loose wires (or corrosion) in the actual switch?

[P.]

[garth]

The little push button does work, the big flick button doesn't.

Contacts look clean and I have sprayed WD on them.
____________________
You ain't a has been if you never was

[andym]

silly question... did they work before spraying the WD40 on them?

[garth]

No.

Otherwise I wouldn't have touched them.
____________________
You ain't a has been if you never was

[andym]

Me personally I'd be stripping down the switch gear completely and making sure all the contacts are clean and clear, checking no loose wires in there (and all springs, clips and any other bits that can become dislodged) are in place and secure, then start tracing back down the wire to the plugs, check all the pins are clean in there, maybe try running a wire from the live terminal up to the back of the bulb and find out if everything works as it should that way (be careful where poking the wire though).... but as I say... that's just what I'd be doing

[Timmeh]

Headlight relay?

Had the same problem on the RVF.
____________________
GSXR400 x2 | '94 RVF400 | '93 TZR125 4DL (again)
20:22:30 BLUEX5: i would love to be forced to undergo a**l plugging with different sizes
20:48:18 Temeluchus: comp you hunk of smouldering homos3x you

[garth]

[G]

There will probably be a relay for the headlight, so the full power doesn't go through switch.
(As opposed to my Delica, which it turns out does have full power going through the stalk, when the fuse blew due to a short and I replaced it with one from a dodgy batch that it turns out don't blow - cue a fair bit of smoke pretty quickly and lots of melted stuff.)

[garth]

Ok, so if I trace the wires from the switch, it should go through a relay before it goes to the bulb?

Does the 'pass' button not go through said relay?
____________________
You ain't a has been if you never was

[lihp]

You've still not said if you've tried another bulb.

Check switches for continuity. Then work your way to the bulb

[chris-red]

I had a similar issue, with the TDM down to a dodgy earth, I'd inspect each connector block clean then up and make sure the connections are good.
____________________
Well, you know what they say. If you want to save the world, you have to push a few old ladies down the stairs.
Skudd:- Perhaps she just thinks you are a window licker and is being nice just in case she becomes another Jill Dando.
WANTED:- Fujinon (Fuji) M42 (Screw on) lenses, let me know if you have anything.

[G]

Wiring diagram:
https://s574.photobucket.com/albums/ss182/hmmmnz1/Honda/?action=view¤t=cb600f.jpg

No relays it seems.
Mistakenly thought it was the ZX9 and first looked at wiring diagrams for that - turns out the single headlight C doesn't have a relay but the dual headlight E does, as a point of interest.

So if the pass button works it very much points to it being a switch.

Possible it could be either the main lighting switch (though the sidelight bit of that works, it's a separate bit) or the 'dimmer' switch.

Should be able to unplug the ends get the multimeter out and poke it into the appropriate bits to see if a connection is made for both.

[garth]
