A list of tools to save for

[J.M.]

In the new year sometime I want to completely strip by bike down and rebuild it. I'm talking full service.

I want to do it for a few reasons; to increase my knowledge and because the engine is running a little rough. Whilst it's in bits I'll take the chance to tidy it up a bit too; maybe paint the frame, put braided lines on, service the forks and brakes.

Whether I do it or not is dependant on whether or not I'm able to borrow a bike for the duration of the rebuild though Still, I want to build a complete list of tools that I would need and should have to do such a task. That way I can start saving up for them now and start buying the piece by piece. Price is very important as I don't have a whole lot of cash; read about £20 a week if I don't go out at all.

So far my tool collection consists of:
- Halfords 235 piece Dynamic Tool Chest
- Hammer
- B&Q Mole Grips (which are rubbish)
- Multimeter
- Torque Wrench (not sure of the range... probably starts at 25nm)
- Adjustable Spanner
- Cheap Soldering Iron + Solder Remover + Solder

The things I know that I'll be needing:
- Feeler Gauge
- Spark Plug Gap Tool
- Compression Tester
- Cam Chain Riveter Tool
- C Spanners
- Homemade carb syncing tool
- Impact Driver
- Lower Range Torque Wrench
- Rubber mallet
- Better Mole Grips & Vice Grips
- Heat Shrink
- Assortion of electrical connectors
- Something suitable to hold the clutch & flywheel
- Valve Shim Tool
- Valve Spring Compressor

What are the other tools that I'll be neededing for such a job and what sort of prices should I be expecting to pay?

I have downloaded a 4 part video of somebody doing a top-end rebuild on the exact model of engine that I have and have the Haynes manual too to help me along, but neither really detail what I need to buy in detail.

Any suggestions would be nice and I'll edit them in to this post and build myself a list and purchase tools as and when I can afford them.

Thanks
____________________
2004 R1 & 2018 XSR900

[mrdelmonti]

Don't need a plug gap tool, just use the feeler gauges.

[J.M.]

ok thanks
____________________
2004 R1 & 2018 XSR900

[Joncrete Cungle]

Is the bike the 04 GS500F in your signature? I have found in the past certain bikes have needed certain specialist tools or sizes of tool to get a part in our out. Someone with a bit more familiarity with the particular bike might be able to assist you on that one.

[Bezzer]

If this is a TOTAL engine strip you don't really need a cam chain rivetter, OE come in a continuous loop and you just loop it over the crank. You need a smaller range torque wrench as well if it is a full strip.
____________________
I used to be indecisive but now I'm not quite so sure.

[Aff]

Impact driver, probably one of my most used tools.

Get a decent pair of mole grips and vice grips too, always come in useful.
____________________
Current Bikes:Honda 929RR Fireblade, Honda CD200 Benly (Project), Stomp Z2 140
Electric Bike Project

[Walloper]

[J.M.]

[Kickstart]

Hi

I would add screw drivers and allen keys to that list depending on what is in the Halfords kit you already have.

As to a digital torque wrench, my feeling is that it will just give you a precise read out, without necessarily being accurate (plus probably easily damaged). Would be better to spend the extra money for the digital read out on something of a higher quality.

All the best

Keith
____________________
Traxpics, track day and racing photographs - Bimota Forum - Bike performance / thrust graphs for choosing gearing

[orac]

i use one of these to remove the fly wheel

https://www.machinemart.co.uk/shop/product/details/cht248-13-pce-harmonic-balance-puller?da=1&TC=SRC-balance+puller

however if it the GS, you may need to find a correct puller or look to see if this will work (same as i use for removing my starter clutch)
https://www.machinemart.co.uk/shop/product/details/laser-1914-gear-puller-4-23-leg-reversible?da=1&TC=SRC-gear+puller

the motor isnt in the bike you will also need to find a way to hold the crank (specialy if you dont have an impact wrench).

clutch centre holder (will be needed to correctly torque)
https://www.ebay.co.uk/itm/Sealey-Tools-VS1812-Motorcycle-Clutch-Flywheel-Pulley-Holder-Universal-Motorbike-/140666811895?pt=UK_Motorcycle_Parts&hash=item20c06535f7

this may come in handy for holding your flywheel too
https://www.ebay.co.uk/itm/FLYWHEEL-CLUTCH-PULLEY-HOLDER-SEALEY-VS1811-MOTORCYCLE-/190389398573?pt=UK_Motorcycle_Parts&hash=item2c5417ac2d

also you are going to need various micrometers and, and maybe a plastiguage to check things like crank shaft wear. also depending on how far you want to go, you may well need a set of v-block, dial gauge and stand to check for crank straitness.

oh an nearly forgot you will need to check the conrod eyes and bores for where too, so you will need to either go to a shop to have them checked, or buy the correct tool (which the name eludes me at this time)

oh a set of vernier caliper are extremeley hand too. along with a good work bench fitting to a decent vice.

do you have valve spring compressor, lapper, seat cutters and maybe a reamer dpending on wear??

rebulding a motor correctly isnt that simple, most dont bother as the cost of the tools isnt worth it for just 1 job - so maybe you can borrow some
____________________
Current rides - 2016 Triumph Street Triple Rx, 1994 Suzuki Bandit 400 VM, TGB 204 Classic 125cc
"with nothing left to lose, there is everything to gain. It's not the size of the dog in the fight, it's the size of the fight in the dog"

[janner_10]

May not be massively relevant for your current job but being more electrically minded I would add a small selection of through / bullet crimps and various spade / ring connectors male and female for some wiring repairs.

Plus soldering iron and small heat shrink kit.

Nothing worse than trying to trace an intermittent wiring fault and finding some berk has done little more than twist 2 cables together and bunged on some tape.
____________________
Yamaha FZS600 (Now gone to heaven) > CBR600F4i (SOLD) > '99 YZF-R1

[J.M.]

Just looking to do as much as a can whilst spending only a reasonable amount on tools. I see tools as a worthwhile investment because I've got an entire lifetime for them to prove their value to me in terms of less trips to the mechanics

But obviously what I can actually afford on a student budget is a big issue.

I know that I need to go as shallow as checking the valve clearances, anything else that I can do at the same time without costing a fortune is a big bonus

The video that I watched went a little deeper than the valve clearances and replaced something else too but I can't think exactly what, I'll have to rewatch the video. They also used this big "G clamp" for some sort of spring compression I think?
____________________
2004 R1 & 2018 XSR900

[Kickstart]

[J.M.]

[Kickstart]

Hi

The shim tool looks like it compresses the bucket so you can slide the shim out. Seen them advertised before for not much though.

As to the valve spring compressor, that's a bit one! General shape should be OK. I will dig out mine once I get home and take a piccy.

All the best

Keith
____________________
Traxpics, track day and racing photographs - Bimota Forum - Bike performance / thrust graphs for choosing gearing

[J.M.]

It does look exceptionally big for what they're using it for!
____________________
2004 R1 & 2018 XSR900

[Vincent]

Avoid using pullers with "legs" on to remove flywheels. They can crack the magnets which will the proceed to fall apart off at high speed. The resulting imbalance can mash up the crank bearings.
____________________
Space Is Deep

[orac]

the legs would have to hook in behind the starter clutch(mean it doesnt get close to the magnets). the way the GS5 is setup means its using a gear puller or spend the £££ on the genuine article.

the GS has a slightly different setup on the fly wheel compared to alot of suzukis. the coild for the elternator bolt to the outer casing (easy for changing the alternator as you dont have to remove the fly wheel), but makes fly wheel removal tricky at best
____________________
Current rides - 2016 Triumph Street Triple Rx, 1994 Suzuki Bandit 400 VM, TGB 204 Classic 125cc
"with nothing left to lose, there is everything to gain. It's not the size of the dog in the fight, it's the size of the fight in the dog"

[haroman666]

If you're doing the piston rings, maybe consider Circlip pliers?

You can survive without but £9 for a pair...
____________________
The mistresses: 2000 Honda CBR600f, 2000 Honda VTR1000

[swampy]

I'd go for a decent quality 1/2" knuckle bar too, useful if you don't have some scaffold pole lying about...
____________________
"I hate to advocate drugs, alcohol, violence or insanity to anyone, but they've always worked for me." Hunter S Thompson
"Faster, faster, faster, until the thrill of speed overcomes the fear of death..." Hunter S Thompson

[Vincent]

[orac]

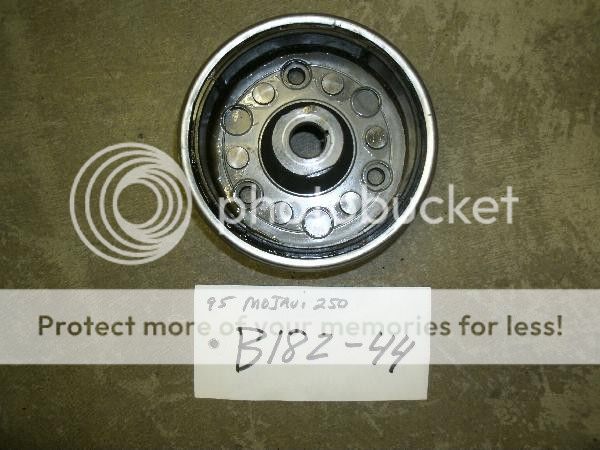

the GS fly wheel goes on the other way up with the magnets facing out, the starter clutch and idle reduction gear (i think tha what they call it) goes underneath. the idea is not to hook onto the fly wheel but the onto that gear.

i will try and find a picture tmrw. as for that first pick, most fly wheels have three threaded whole which is where you screw the bolt in to use the balancer puller - this is not an option with th gs5 as it does not have those threaded whole iirc

should give you an idea
https://www.suncoastcyclesports.com/servlet/the-141585/03-06-Kawasaki-Z1000/Detail
____________________
Current rides - 2016 Triumph Street Triple Rx, 1994 Suzuki Bandit 400 VM, TGB 204 Classic 125cc
"with nothing left to lose, there is everything to gain. It's not the size of the dog in the fight, it's the size of the fight in the dog"

[N cee thirty]

dremel can be quite useful
____________________
'00 Aprilia RS50 > '92 Honda CG > '99 Yamaha Fazer > '91 Yamaha RXS > '79 Suzuki X5 > 01' Honda Cg > 07' Honda Cg > 82' Kawasaki Z200 > suzuki gsxr 400 gk73a > honda vfr 400 NC30 Mod 2 Passed 09/06/2011

Jewlio Iglesias wrote: I actually did vote BNP once

[J.M.]

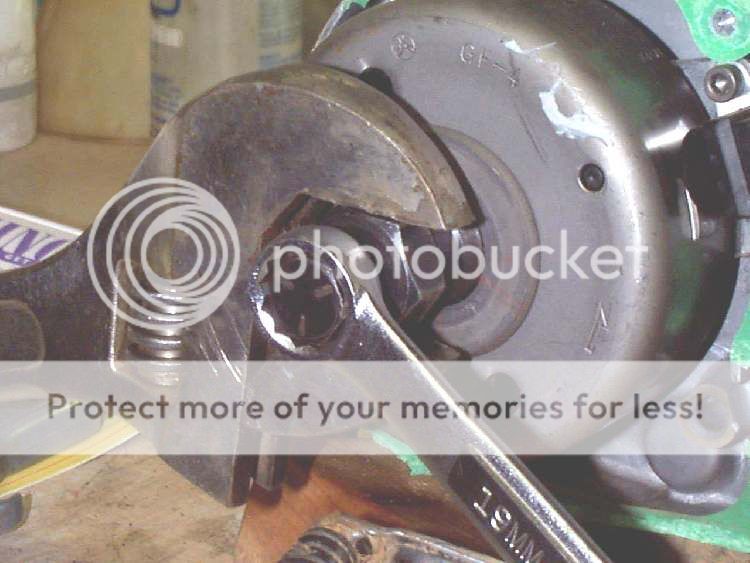

I took this pic whilst changing my stator if it helps decide what I need for the flywheel?
